Tracking and logging devices overview

There are several devices available that you can use to track your shipmentsClosed Representation of a physical transport in the DB Schenker IoT platform. or log shipment data using IoT Telemetry.

The devices have different sensors and characteristics, thereby covering a wide range of use cases. The sections below show the telemetry dataClosed Conditions of a shipment that can be measured over time. For example, temperature, humidity, shocks, etc. the devices provide, and on which sensor(s) a door opening alertClosed Indication that an unexpected event occured to a shipment. For example, the door of a truck is detected as opened during the transportation between collection point and delivery point. is based.

Fact sheets are available for all tracking devicesClosed A device that sends live telemetry data to the IoT Platform. Shipments can be monitored in real time. and logging devicesClosed A device that stores telemetry data of a shipment. The data needs to be manually uploaded to the IoT platform afterwards (no real-time tracking). to give you an overview of each type of device.

Important: To keep IoT devices with sensitive sensors safe, store them in a cool, dry, and dark place. Avoid areas with high humidity, direct light, or heat as these factors can trigger sensors or drain batteries over time. If your device has light, humidity, or motion sensors, block exposure by storing it in opaque or metallic bags.

0.0 A-Type

Tracking device. The all-rounder among the leasing devices with a broad range of sensors.

  • Telemetry data: Location, temperature, light, shock, humidity, vibration, tilt, door

  • Door opening alert: based on door sensor

  • Transport modes: Ocean, land, and air

  • Recommended for: Visibility and Condition monitoring.

  • Can be combined with: BTD-K for enhanced temperature and humidity monitoring



Find out more:

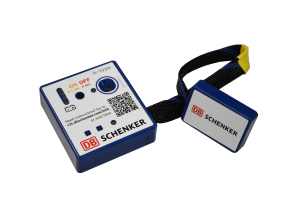

0.0 B-Type

Tracking device. The high-end leasing device for security use cases. Very accurate tracking.

  • Telemetry data: Location, temperature, light, shock, humidity, vibration, tilt, door

  • Door opening alert: based on door sensor

  • Transport mode: Land

  • Recommended for: Security

  • Can be combined with: BTD-K for enhanced temperature and humidity monitoring



Find out more:

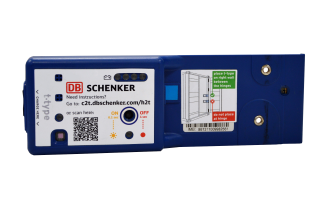

0.0 T-Type

Tracking device. Most used leasing device for security use cases. Easy to handle container mounting.

  • Telemetry data: Location, temperature, light, shock, humidity, vibration, tilt, door

  • Door opening alert: based on door sensor

  • Transport modes: Ocean, land, and rail

  • Recommended for: Security

  • Can be combined with: BTD-K for enhanced temperature and humidity monitoring



Find out more:



0.0 BTD-K

Supplements A-Type, B-Type and T-Type tracker. Additional Temperature and humidity tracking right next to the cargo.

  • Telemetry data: Temperature, humidity

  • Transport modes: Ocean, land, and air

  • Recommended for: Enhanced temperature and humidity tracking



Find out more:



0.0 V-Type

Tracking device. Our allrounder that suits most use cases with a competitive pricing.

  • Telemetry data: Location, temperature, light, shock, humidity

  • Door opening alert: based on light values

  • Transport modes: : Ocean, land, and air. Recommended only for ocean shipments up to 1 month, with medium communication frequency.

  • Recommended for: Visibility and condition monitoring

  • Can be combined with: BTD T for enhanced temperature monitoring



Find out more:

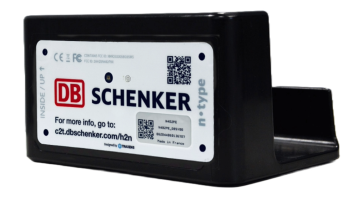

0.0 N-Type & N-Type Reefer

Tracking device. The high-end device in our portfolio. Stands out with its container mounting.

  • Telemetry data: Location, temperature, light, shock, humidity

  • Door opening alert: based on several sensors

  • Transport modes: Ocean, land, and rail

  • Recommended for: Visibility, condition monitoring, and security



Find out more:



0.0 C-Type

Tracking device. Easy to install and self-activating.

  • Telemetry data: Location, temperature, humidity, shock, vibration, tilt, door

  • Door opening alert: based on light sensor

  • Transport modes: Ocean, land, and rail

  • Recommended for: Security of dry containers



Find out more:

0.0 Logger A

Logging device. Our entry-level logger.

  • Telemetry data: Temperature

  • Transport modes: Ocean, land, and air

  • Recommended for: Temperature monitoring



Find out more:

0.0 Logger B / B+

Logging device. Our high-end logger with the most available sensors.

  • Telemetry data: Temperature, light, shock, humidity

  • Door opening alert: No real time alerts. Door events are based on light values.

  • Transport modes: Ocean, land, and air

  • Recommended for: Condition monitoring



Find out more:

0.0 Logger X

Logging device. Our high-end logger for measuring extreme temperatures.

  • Telemetry data: Temperature

  • Transport modes: Ocean, land, and air

  • Recommended for: Condition monitoring



Find out more:

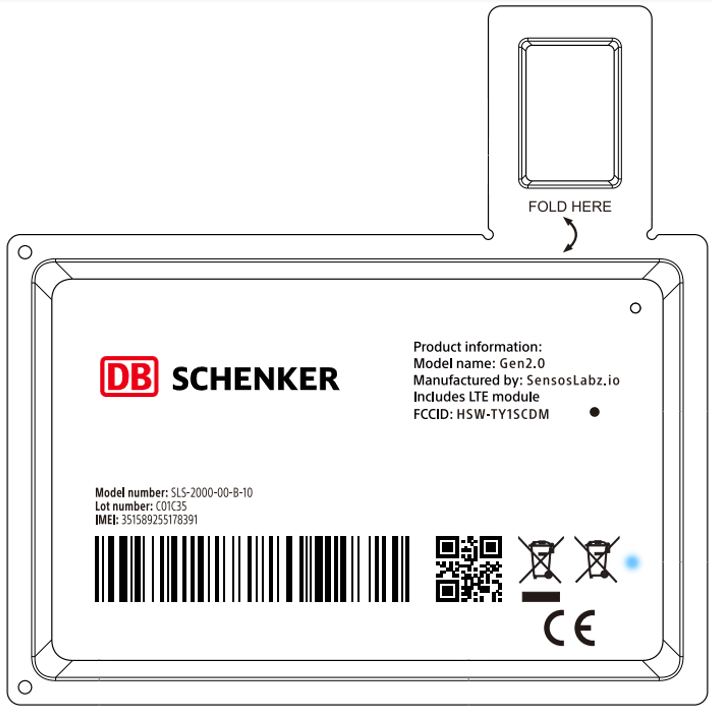

0.0 Logger T

Logging device. Our newcomer in terms of loggers. High price-efficiency and thin as a label.

  • Telemetry data: Temperature

  • Transport modes: Ocean, land, and air

  • Recommended for: Condition monitoring



Find out more:



0.0 A-Tag

Tracking device. Innovative label for tracking on parcel level.

  • Telemetry data: Location, temperature

  • Transport modes: Land and air

  • Recommended for: Visibility and condition monitoring



Find out more:
